WELL-Atech WEF series four-shaft shearing shredder, the material is shredded into small pieces under the combined force of blade tearing, extrusion, shearing, etc.
Working Principle:

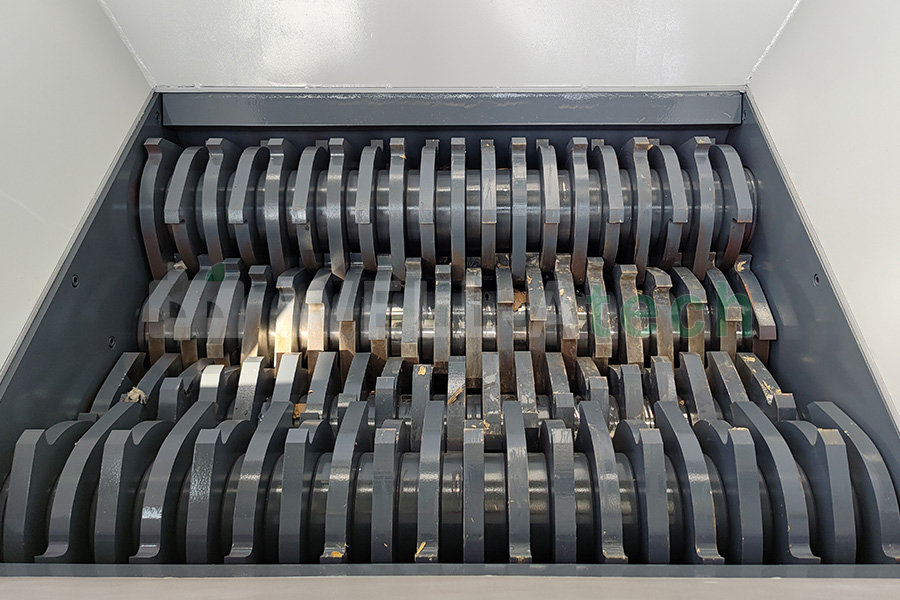

The feed system transfers the material to the interior of the shredding chamber, which holds the blade. The material pushing system pushes the material near the blade, then the material will be torn and cut by the blade. Finally, all materials will turn into small pieces and discharge from the screen mesh.
Features:
1.Driven by motor and reducer.Low rotate speed with high torque. Strong shredding ability;
2. High alloy steel blades, wear-resistant and durable, long service life;
3. Four sets of knife shafts, repeatedly shredding materials;
4. 42CrMo high alloy steel spindle. High machining accuracy. Good mechanical strength. Strong impact resistance;
5. Equipped with a screen, making the end product size uniform and controllable. The screen can be replaced according to requirement, and the operation is simple.

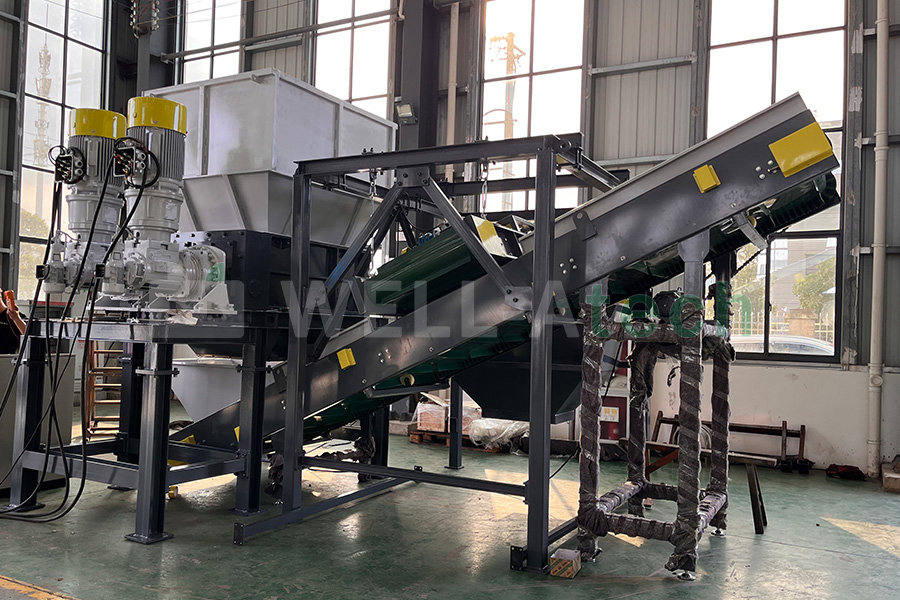

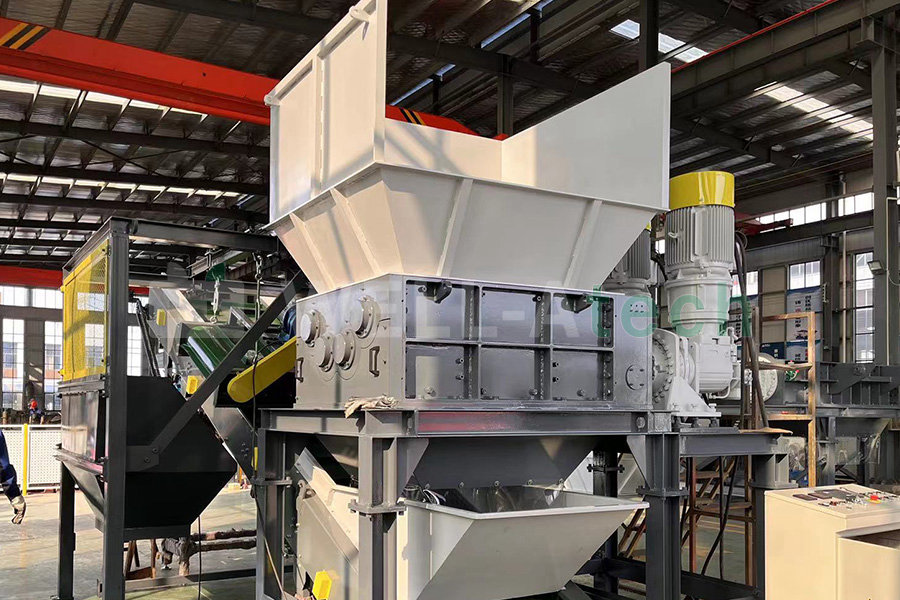

Four Shaft Shredder

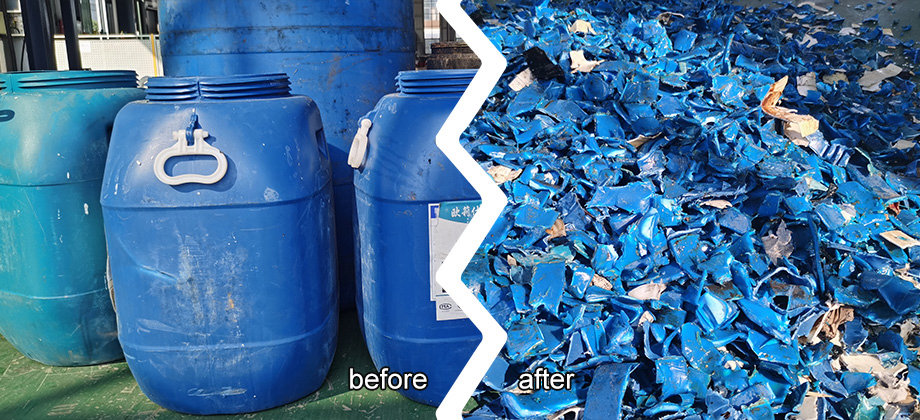

+ Plastic Products: Plastic Pallet, Pet Bottles,Plastic Lumps, Plastic Containers,Plastic Drum,Hard Plastic,etc；
+ Metal: Iron Drum, Aluminum Cans, Ring-pull Cans,Oil Filter,IBC,etc；
+ Paper: Cardboard, Document, Newspaper,etc；

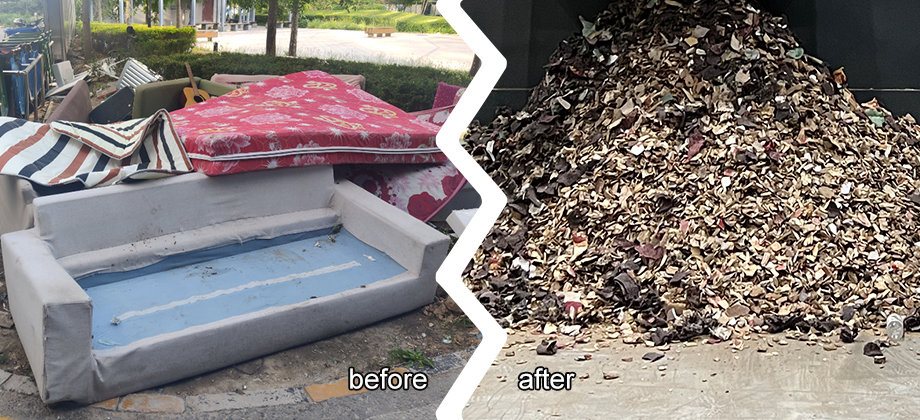

+ Bulky Waste: Sofa, Mattress,etc；
+ Electric Appliance: Refrigerators, PCB Board, Laptop Casings, CDs,etc；

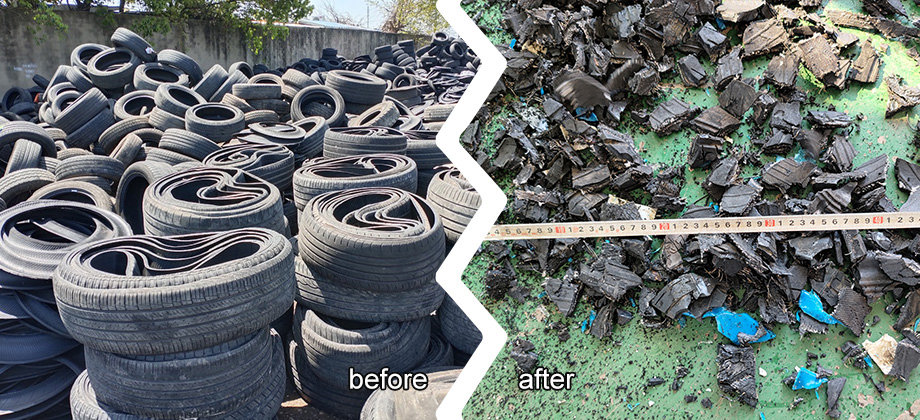

+ Tire: Car Tire,Bicycle Tire,etc；
+ Glass: Glass Cup, Wine Bottle, Fiberglass.

Model Shredding Chamber
 (mm) 		Blade Diameter
 (mm) 		Motor Power
 (kW) 		Weight
 (tons) 		Machine Size
 (L * W * H mm)
WEF400
400 * 300∅1801.5
0.6850 * 600 * 1650
WEF600
660 * 500∅2307.5
1
1400 * 910 * 1800
WEF800
800 * 800∅2452*11
2
2180 * 1200 * 2065
WEF900
900* 1000∅2902*18.5
4.2
2500 * 1320 * 3000
WEF1000
1000 * 1400
∅320
2*22
6.5
3010 * 1400 * 2730
WEF1300
1300 * 1800∅4302*15+2*30
15.5
4000 * 1650 * 2930
WEF1600
1600 * 1600∅5342*30+2*45
18
4360 * 2200 * 3630
