Crusher

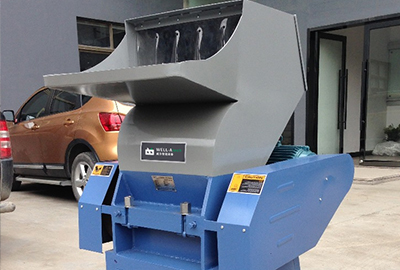

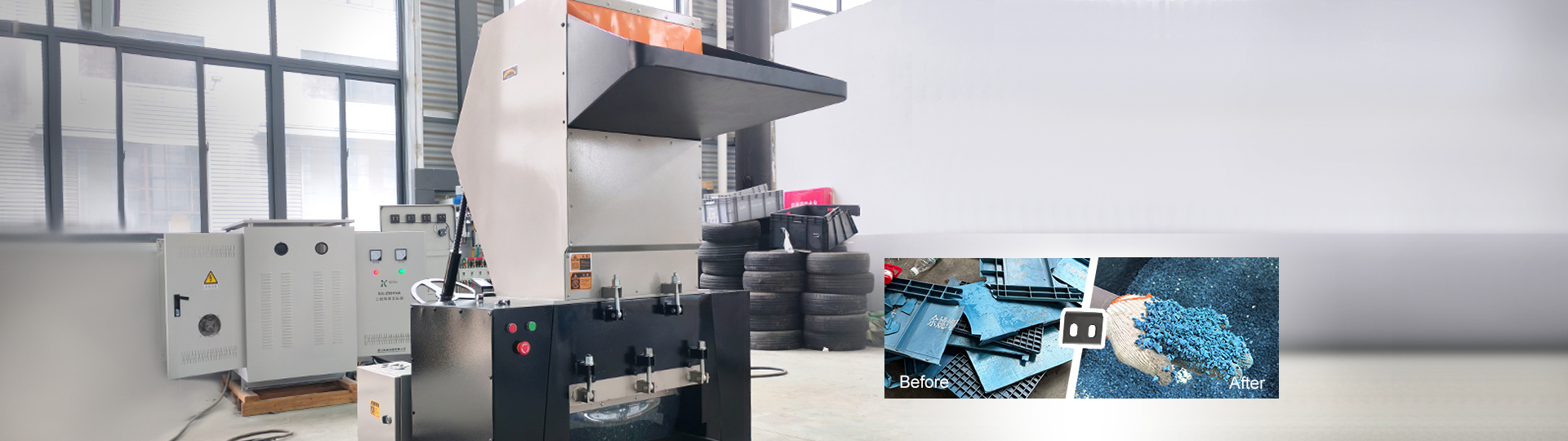

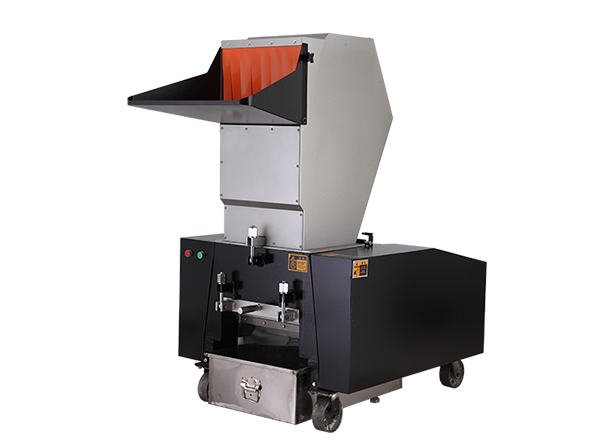

    WEC - Crusher

    WEC series crusher is a powerful crusher with multi applications. Its main function is to crush all kinds of hard and soft plastics, grind block, round or
    strip shaped and outlet plastic into granules. It plays a vital role in prompt recycling and processing of plastic scrap, waste and
     recycling materials, enhancing the utilization of plastic.It can be installed beside the main machine to crush recycled materials during the operation of the
    main machine. It can also be used to crush centralized materials collected from a production line.The crushed material size can be adjusted according
    to screen aperture,final product size is about 5-20mm.

    Our product advantages

    Cutting tools made of high chromium tool steel,gap adjustable and durable；
    The large beltwheel and flywheel increase the impact moment and capacity；


    Blades are made of high chromium tool steel，which are durable and wear-resistant. The rotor blades can be turned over for use, and have a long service life.

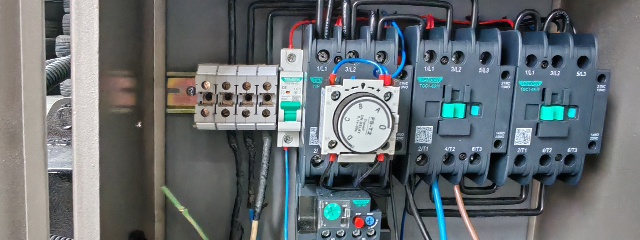

    Motor is designed with overload protection,which will automatically emergency stop when it enters protection mode.

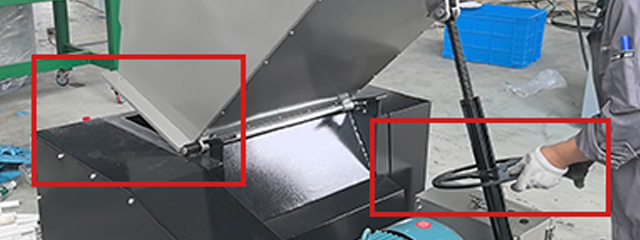

    Detachable design provides quick and easy access to the shredding chamber for maintenance and cleaning.

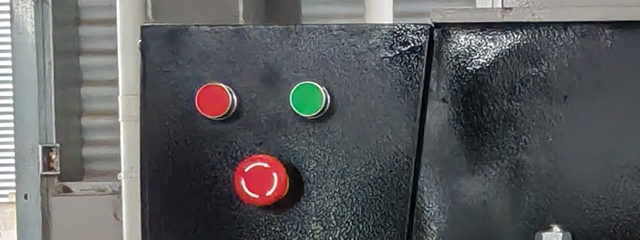

    The crusher is equipped with a one-button operating device, which is safe and convenient to use, with an emergency braking safety device.Interlock safety device protect the operator and the machine.

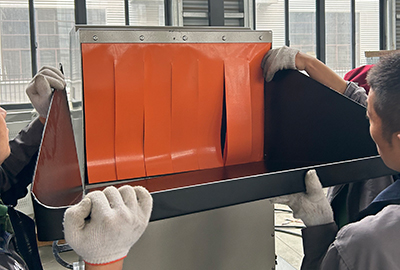

    Heavy load bearing and dust-proof design,with sound-proof plate,can prevent vibration and noise；

    Interlock safety device protect the operator and machine.

    Which model suits your needs?

    Specification
    		WEC-300WEC-400
    		WEC-500
    		WEC-600
    		WEC-700
    		WEC-800WEC-1000
    Power
    		5.5kW  7hp7.5kW  10hp
    		11kW  15hp
    		15kW  20hp
    		22kW  30hp
    		30kW  40hp
    		37kW  50hp
    Rotating  Speed(r/min)
    		610580600500490440440
    Capacity(kg/h)150-200
    		250-400
    		300-500
    		500-600
    		600-700
    		700-800
    		900-1000
    Feeding Port Size(mm)
    		300*200
    		400*250
    		500*285
    		600*315
    		685*430
    		800*450
    		1000*500
    Screen Size(mm)
    		8
    		10
    		12
    		12
    		121214
     Dimension (Length)
    		1,070 mm1,290 mm1,370 mm
    		1,540 mm
    		1,750 mm
    		1,950 mm
    		2,250 mm
    Dimension (Width)
    		720 mm860 mm1,000 mm1,150 mm
    		1,250 mm
    		1,370 mm1,600 mm
    Dimension (Height)1,080 mm
    		1,180 mm
    		1,390 mm1,660 mm
    		1,960 mm2,180 mm2,400 mm





    Can handle the following materials

    Wooden cabinet

    Plastic Boxes

    Output

    Cable

    Output

    PVC Pipe

    Output

    PET Bottles

    Output

    Plastic Lump

    Output

    PC Plastic

    Output

    Success stories

    Thailand
    Vietnam
    Zambia

    Global contacts

    No matter whether your location is in Saudi Arabia, Vietnam, Nigeria, Mexico, Malaysia,Australia or somewhere else in the world: We always have the right contact person for you. At any time you can reach an expert from our company by phone or e-mail, who takes care of your concern competently.

    Your direct contact to us!

    Customer reviews

    “Super impressed with the speed and efficiency. I can shred materials quickly without the machine jamming up. It’s really saved me a lot of time!”

    Eliezer Alvarez
    CEO

    “We've been using this bulky waste recycling line daily for months, and it’s still going strong. Built to last and keeps up with our company’s high demands.”

    Xavier Nelson
    Chief Manager

    “For the price, this cable wire recycling line is unbeatable. It’s efficient, durable, and reliable. A great investment for anyone needing to recycle valuable coppers and plastics.”

    Junior Crispin
    Purchase Manager

    “We needed something heavy-duty for our company, and this industrial shredder has been fantastic. It can handle everything from various solid wastes in our company.”

    Ilya Alexandrovich
    General Manager

    “Unlike smaller shredders, this industrial model doesn’t overheat even with continuous use. Ideal for environments where we’re constantly shredding.”

    Lucie Bohdan
    Technical Director

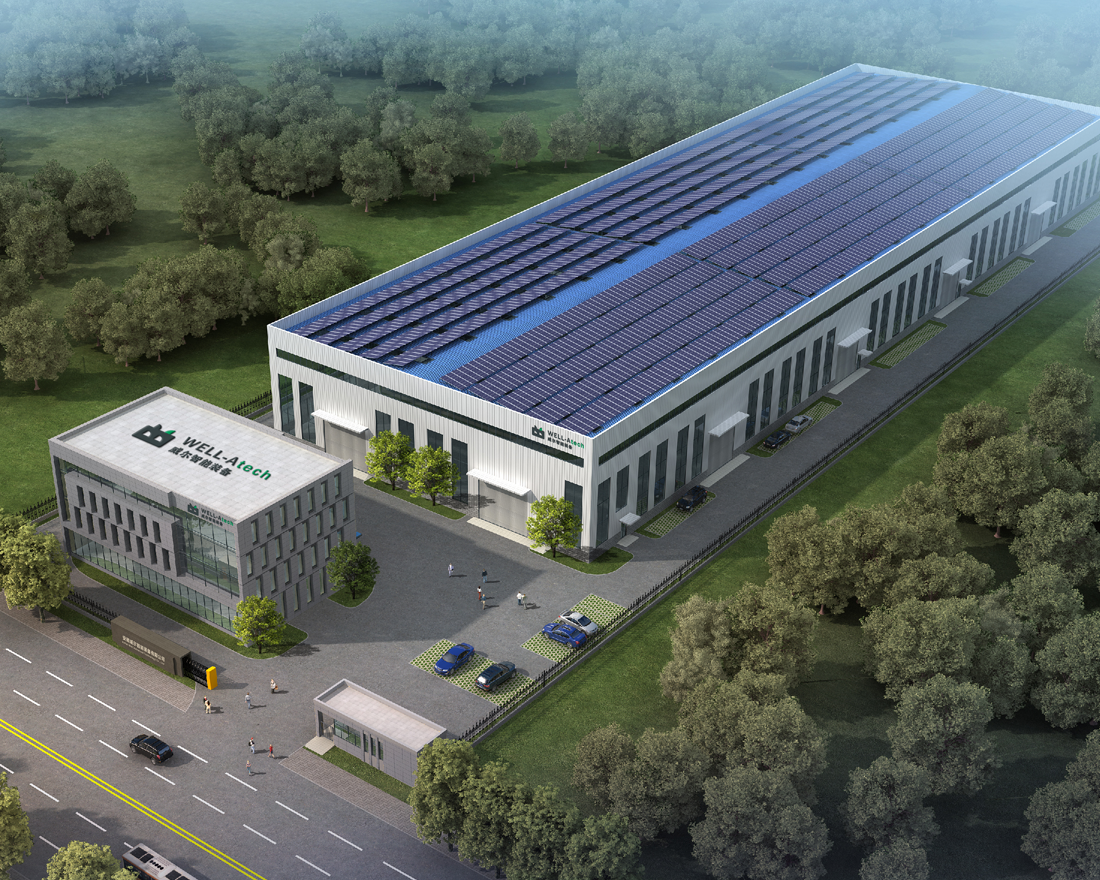

    Well Advanced Technology Co., Ltd
