Double Shaft Shredder - S Series

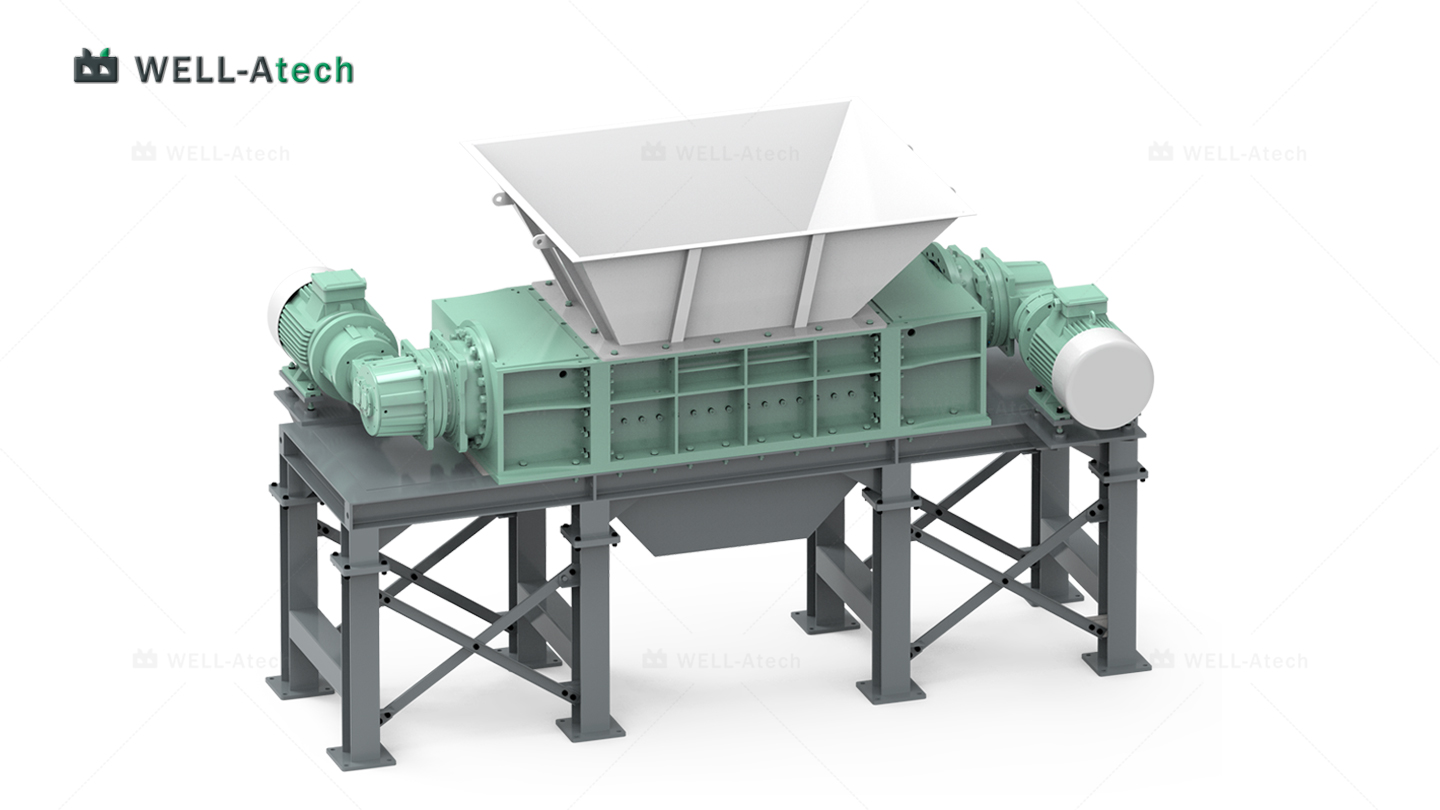

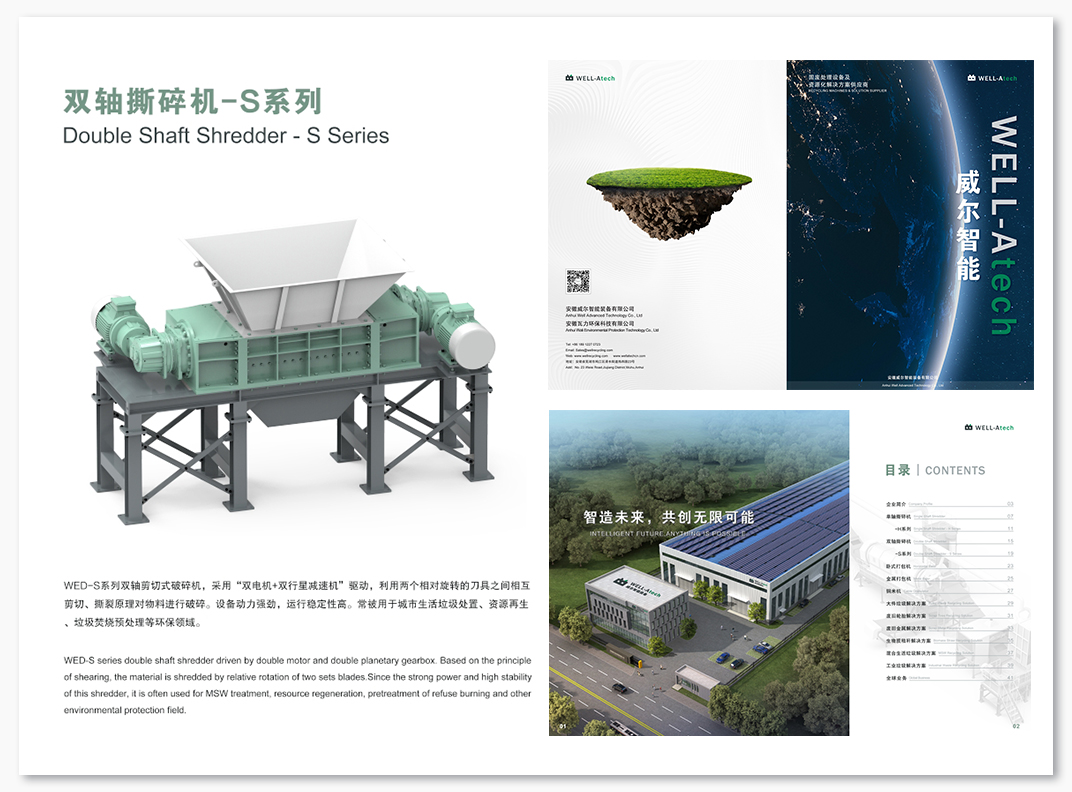

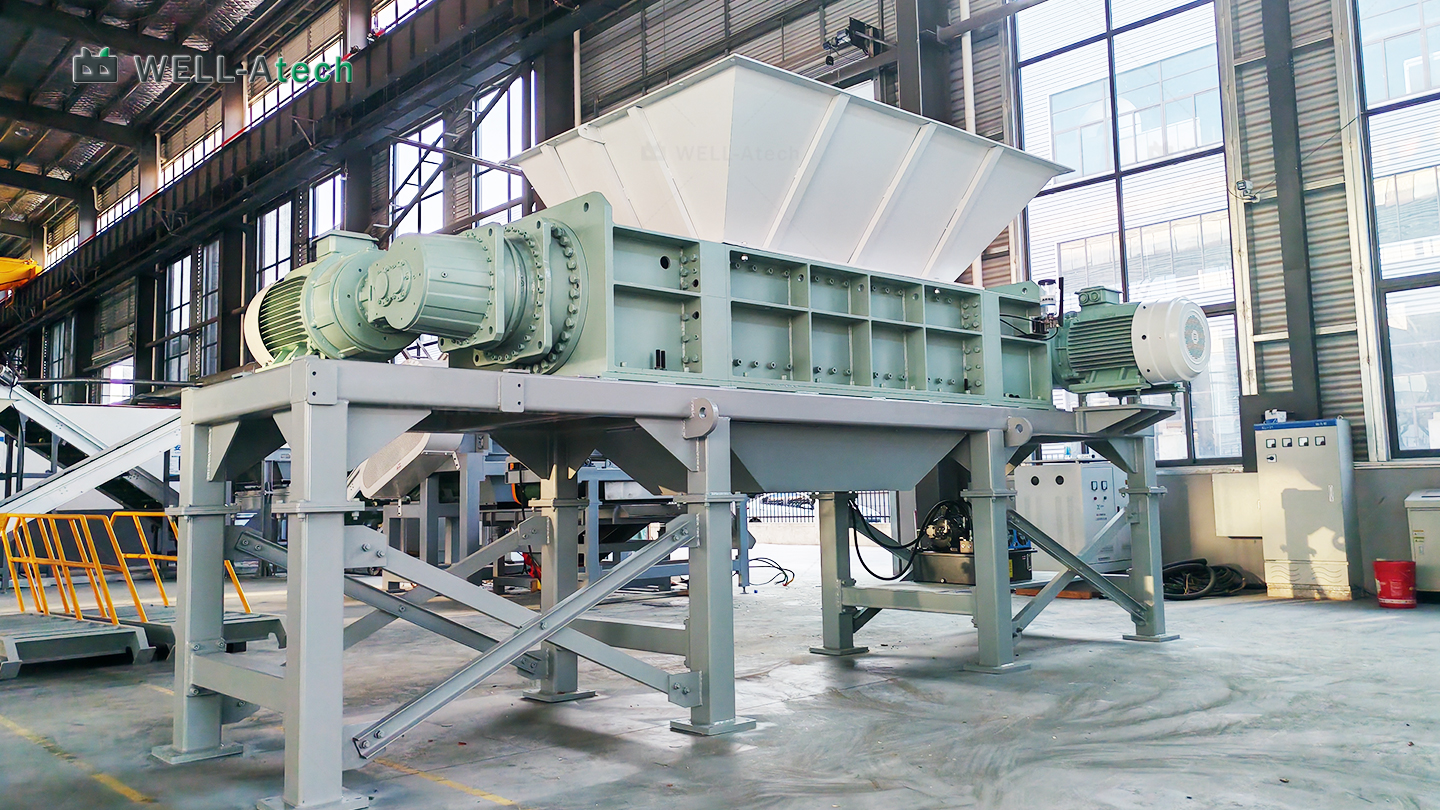

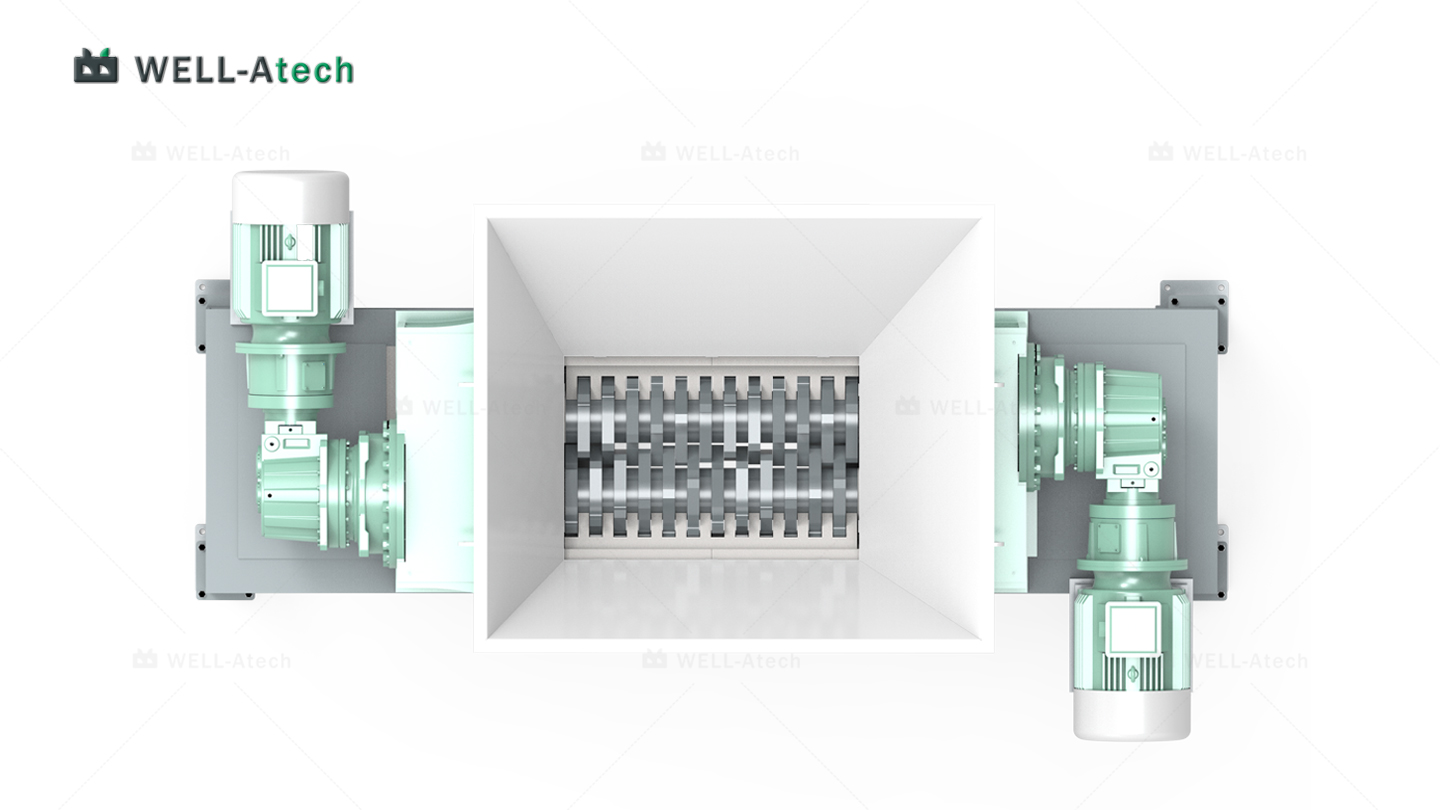

WED-S series double shaft shredder driven by double motor and double planetary gearbox. Based on the principle of shearing, the material is shredded by relative rotation of two sets blades.Since the strong power and high stability
of this shredder, it is often used for MSW treatment, resource regeneration, pretreatment of refuse burning and other environmental protection field.

Double Shaft Shredder - S Series

+86 189 1227 0723

Data Download

Get Quotation

Hotline

Factory
Direct

One Year
Warranty

工厂直营

Lifetime After-sales
Service

工厂直营

**7*24 Hour
Service**

工厂直营

Working Videos

Application

Output Display

Features

Parameters

Output Display

Features

DILLIGUR / HARDOX Imported raw material NiCrMo High alloy steel.

Adjustable blade thickness & Teeth number.

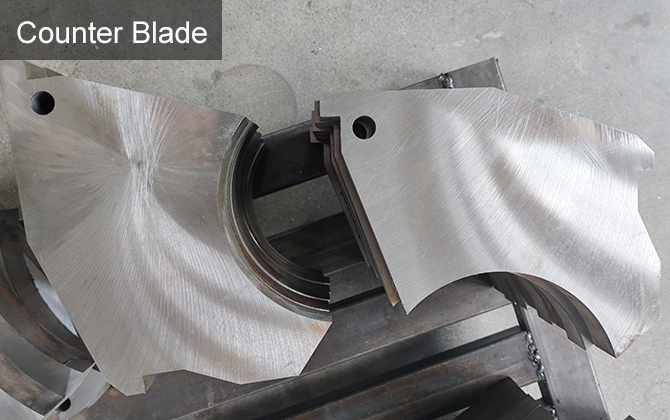

Counter blades on both sides of shredding chamber can prevent material from winding.

Individually removable design for easy maintenance.

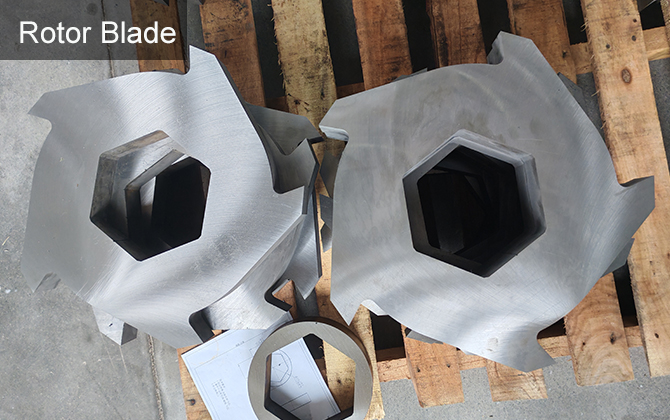

Adopts 42CrMo high alloy steel, ensure its good mechanical strength and shock resistance.

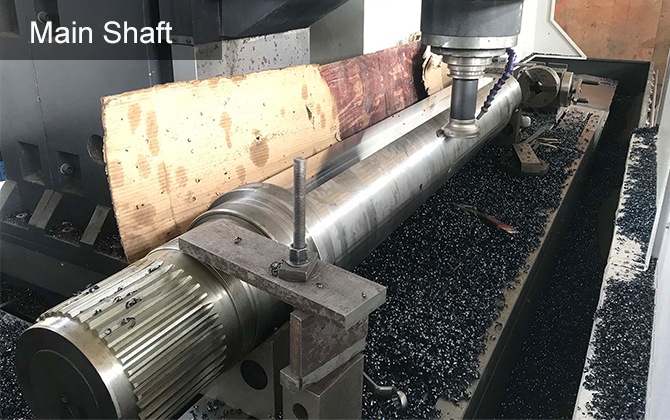

Splined blade teeth with hex shaft for uniform torque distribution to extend the life of the spindle.

Can add press device to improve the shredding efficiency and increase the production capacity.

+ Bulky Waste: Sofa,Mattresses,Table and Chair,Furniture,Bed Frames,Wooden Cabinet etc
+ Domestic Waste

+ Scrap Tire: Scrap Car Tires

+ Industrial Waste: Old Clothes, Leather,Textile Scraps,General Industrial Waste etc
+ Biomass Straw: Rice Straw,Wood,Corn Straw,Bagasse,Cocont Shell etc

+ Hazardous Solid Waste: Medical Waste,Radioactive Waste,Oil Drums,Jumbo Bags etc
+ Metal Waste: Scrap Car Shell,Aluminum Alloy die-casting parts,Household Appliances etc

Application

Working Videos

Straw

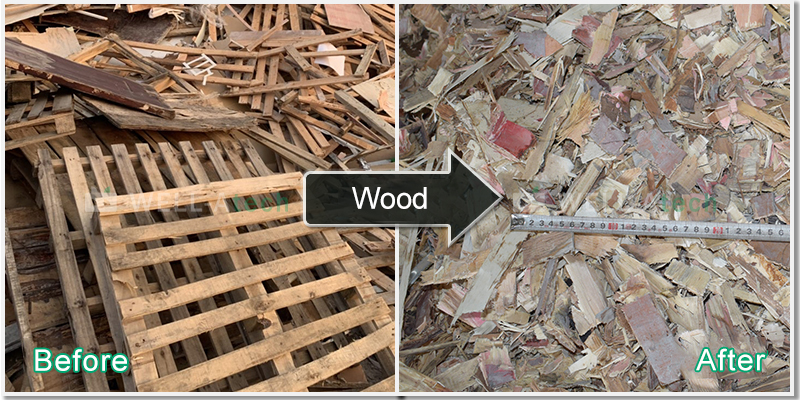

Wood

Jumbo Bags

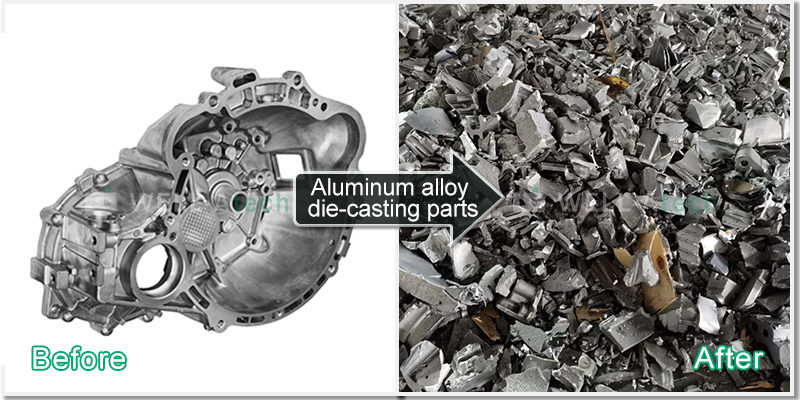

Aluminum Alloydie-casting Parts

Industrial Waste

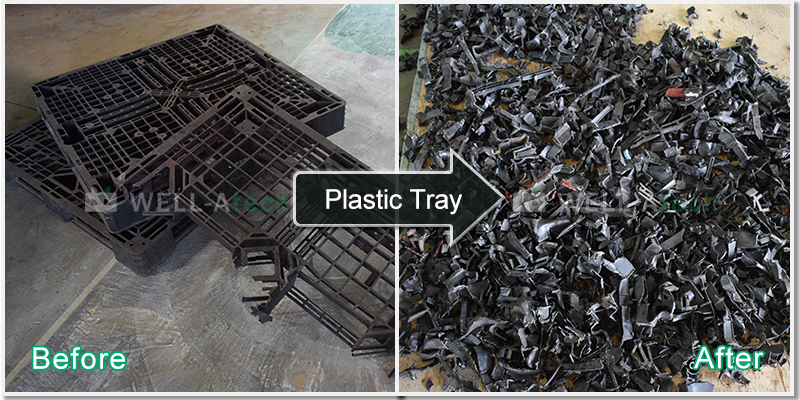

Plastic Tray

Model	Crushing Chamber(mm)	Rotation Diameter (mm)	Power(kw)	Weight(kg)	*LWH Dimension(mm)*
WEDS-1000	1000*700	φ330	30+30	4500	315021502500
WEDS-1200	1200*800	φ400	45+45	8000	410023002800
WEDS-1600	1600*1100	φ550	90+90	16000	563031603200
WEDS-1800	1800*1000	φ500	75+75	22000	611049575520
WEDS-2000	2100*1300	φ650	200+200	29000	670037003600
