Cable Recycling Solution

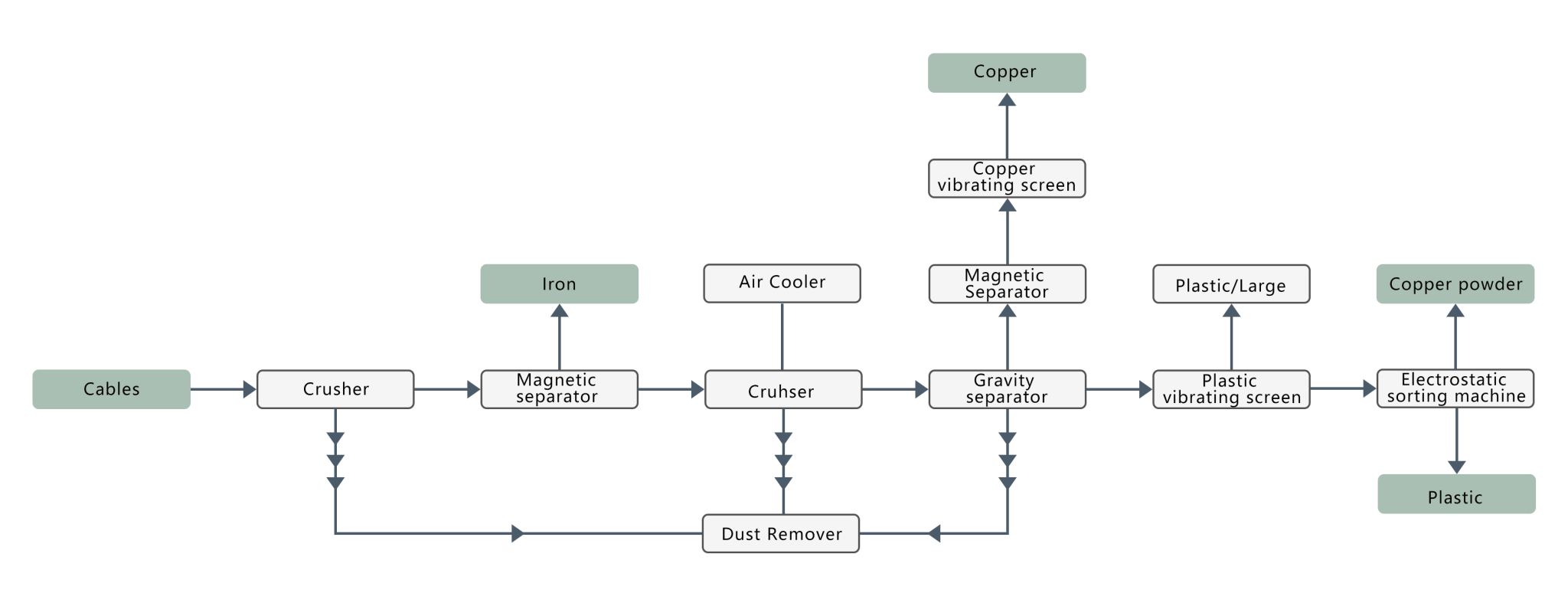

Well-Atech WECG series cable granulator can recycle the waste cables by crushing, gravity separation, vibration separation, magnetic separa-tion processes to separate the plastic and copper, iron, etc,the sorting rate is up to 99%.

Well-Atech WECG series cable granulator can recycle the waste cables by crushing, gravity separation, vibration separation, magnetic separa tion processes to separate the plastic and copper, iron, etc,the sorting rate is up to 99%.

Application :Scrap Copper Cable

Features:
1.The humanized simplified structure design is easy to maintain.
2.Intelligent control, high degree of automation, overload automatic shutdown protection.
3.Specific gravity separator as the core of the cable granulator,it determines the separation purity of the prod-ucts,directly affect recovery benefits,adopt european air.
specific gravity stratification technology,frequency con-version control,with high separation precision.
4.Crusher with high-intensity staggered blades has a higher crushing efficiency. The blade is made of alloy steel with durable long life.
5.The crusher is equipped with air cooling system to delay the heating of materials and crushing warehouses.
6.The equipment is operating closed with dust collector system.
7.The Cable Granulator with shredder is more efficient,and can input materials in large quantities to save labor.

Cable Recycling Solution

Copper
Plastic

ModelMotor Power
(kw)
Capacity
WECG400
27100-200kg/h
WECG650 (standard)
58200-400kg/h
WECG-650 (high)
58200-400kg/h
WECG-800S
110400-800kg/h
WECG-1000S
166500-1000kg/h

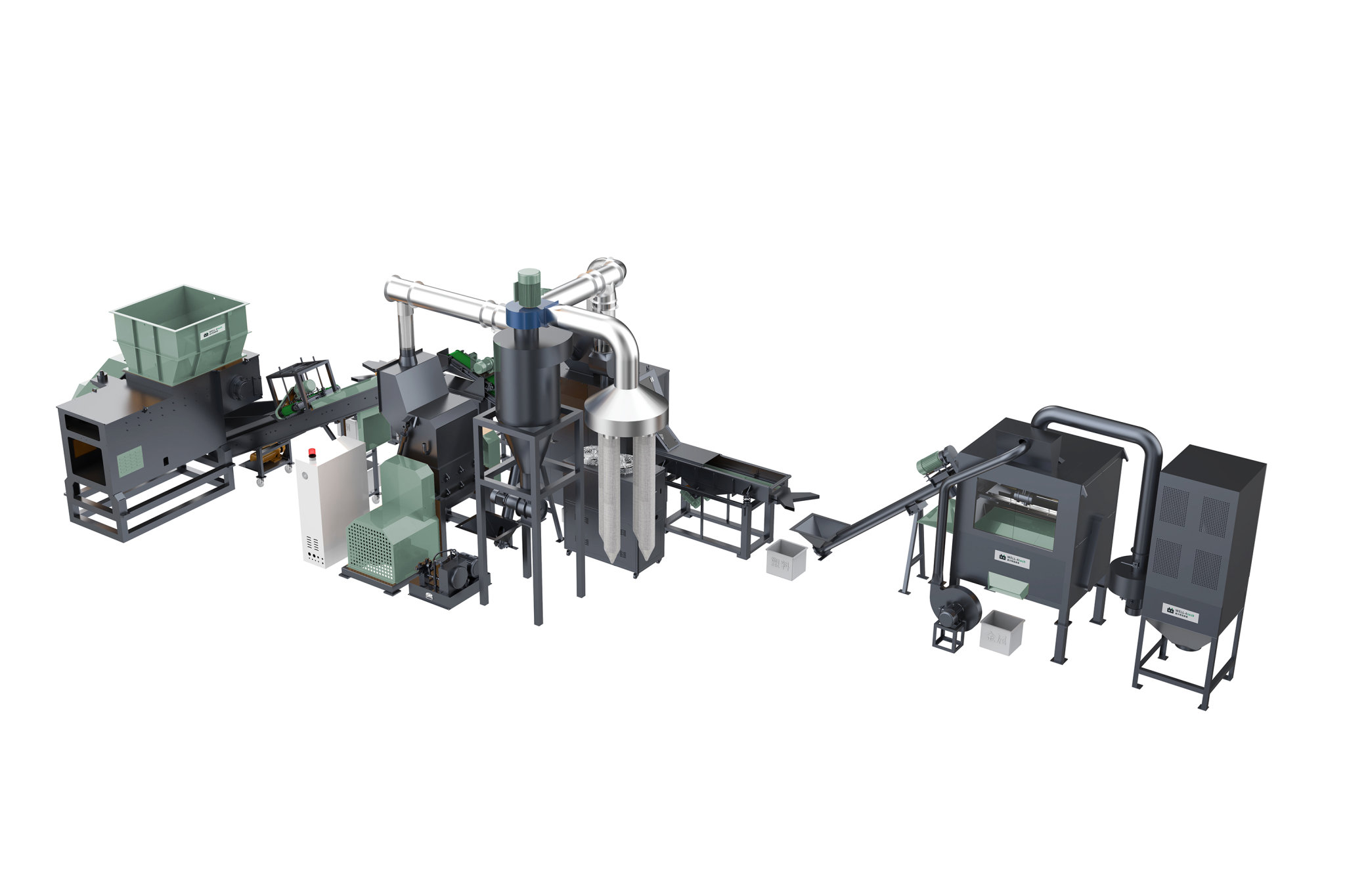

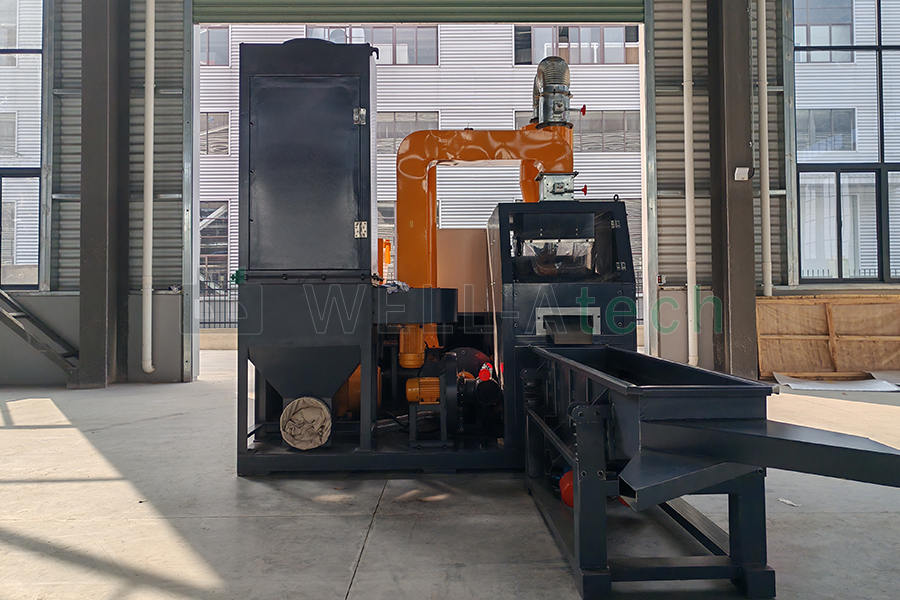

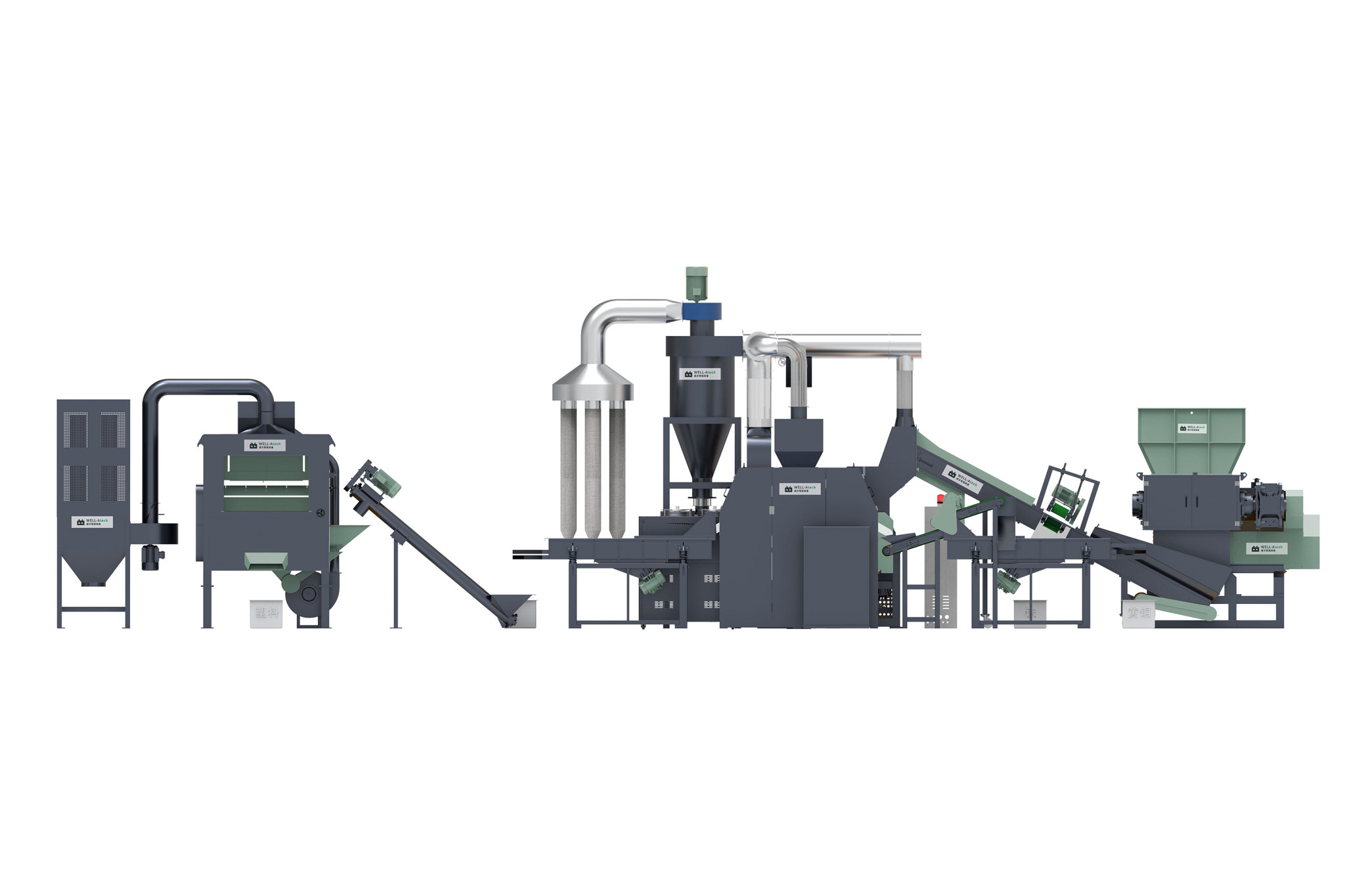

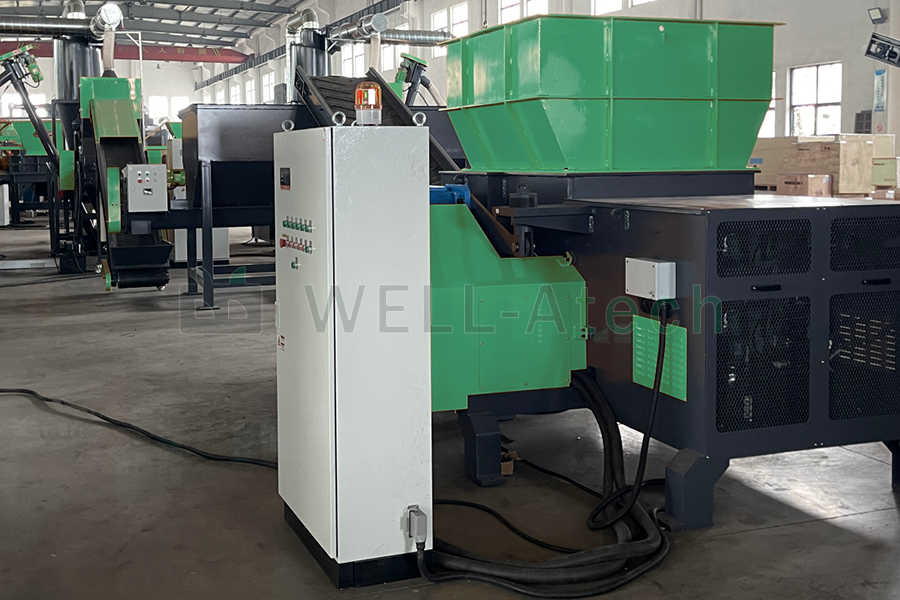

Machine Photo
